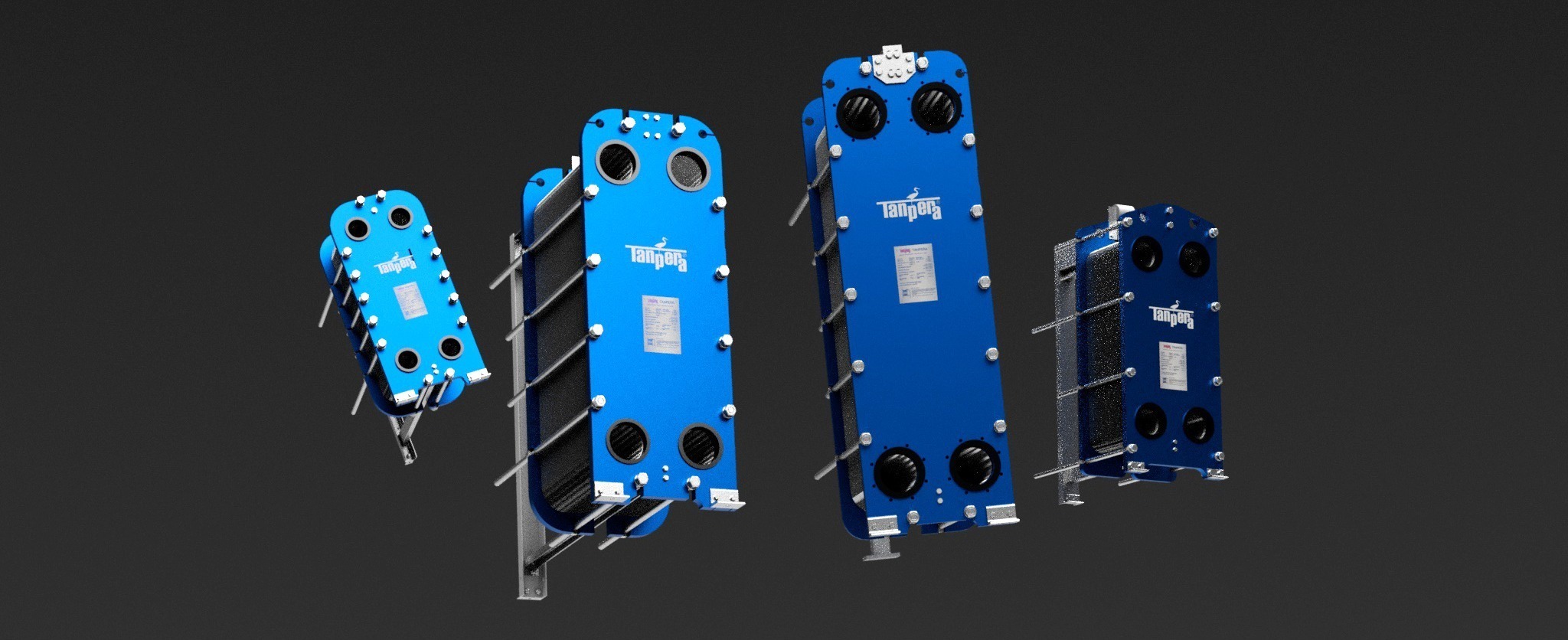

Gasketed Plate Heat Exchanger

Superior Heat Transfer at Any Temperature

Tanpera Gasketed Plate Heat Exchangers offer high efficiency, compact design and energy savings. It has a wide range of applications from HVAC systems to industrial applications and reduces operating costs with the advantage of easy maintenance.

Description

Gasketed Plate Heat Exchanger

Tanpera Gasketed Plate Heat Exchangers are high performance heat exchangers designed to provide maximum heat transfer between fluids. Advanced gasket technology prevents the fluids from mixing with each other and provides a leak-proof guarantee. Offering an effective solution even in narrow spaces thanks to its compact structure, these heat exchangers provide economic benefits with energy savings. Ideal for use in HVAC, Energy, Food and many Industrial sectors.

Working Principle

The working principle of Gasketed Plate Heat Exchangers is based on the movement of two different temperature fluids in opposite directions along the plate surfaces. This opposing flow pattern ensures maximum heat transfer efficiency.

Plates: Specially designed to create highly turbulent flow, thus accelerating heat transfer.
Gaskets Seals and prevents mixing of fluids.
Heat Transfer: With a layout optimized for inlet temperatures, the fluids effectively transfer their energy to each other.

Technical Specifications

Plate Material: Stainless steel (AISI 304/316), Titanium
Gasket Material: EPDM, NBR, Viton
Maximum Pressure Resistance: 25 bar
Temperature Range: -20°C to +180°C
Modular Design: Production options in different capacities

Product Video

Areas of Use

Application Areas

HVAC Systems: Heating, cooling and ventilation processes.
Industrial Plants: Chemical processing, energy recovery.
Food Processing: Pasteurization, sterilization, cooling processes.
Power Plants: Hot water and steam production.
Petrochemistry: Processes requiring heat transfer.

Tanpera Gasketed Plate Heat Exchangers make a difference in the industry with high performance, long life and low operating costs. It is an ideal solution to increase energy efficiency and achieve environmental sustainability goals.
